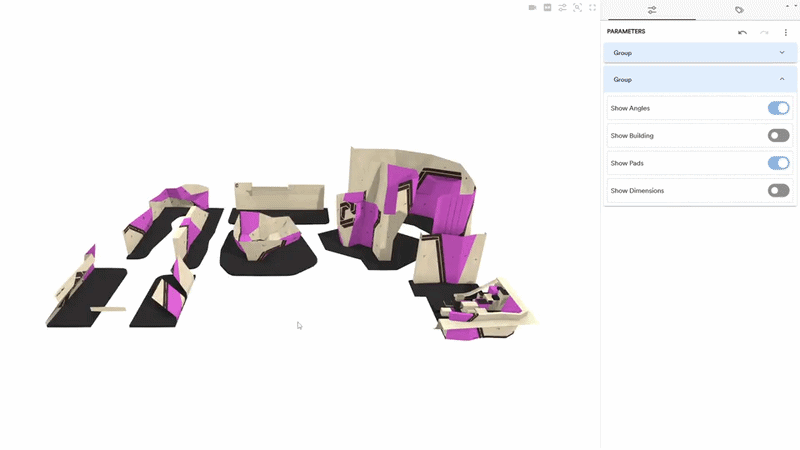

See example of a ShapeDiver Concept Model at this link.

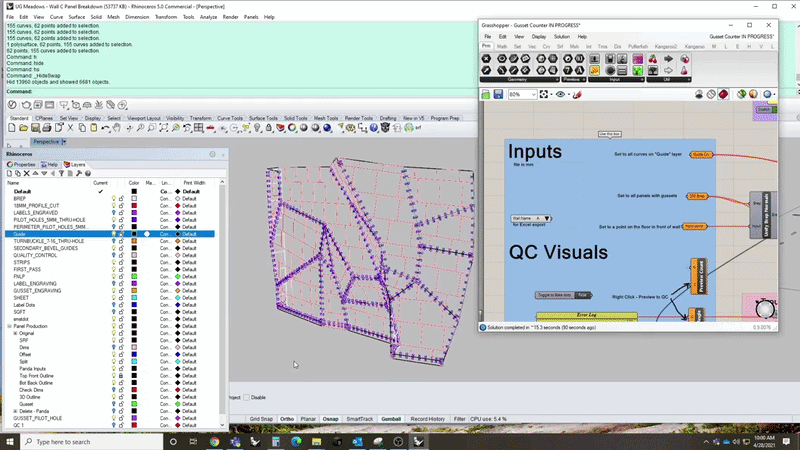

The Gusset Counter measures the angle of each modeled gusset and creates a table of how many of each angle there is.

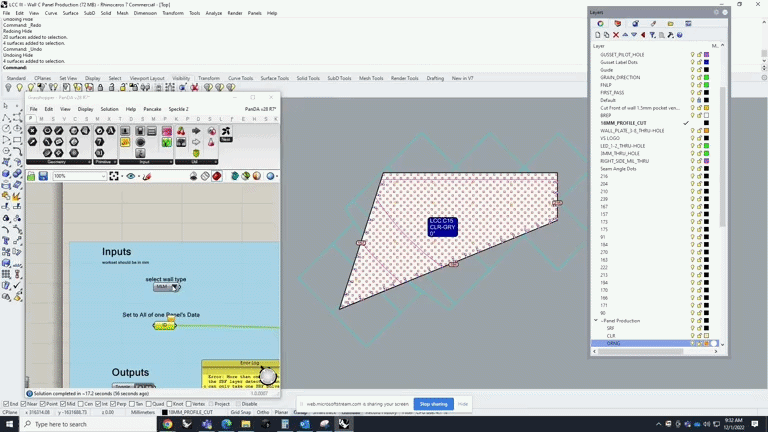

PanDA, for Panel Development Assistant, takes a panel, divides it into pieces, and populates the 3D geometry that the CNC programmer uses to make cut files .
The Diamond Plate tool models the PLASMA CNC file from the outline of a climbing crash pad.

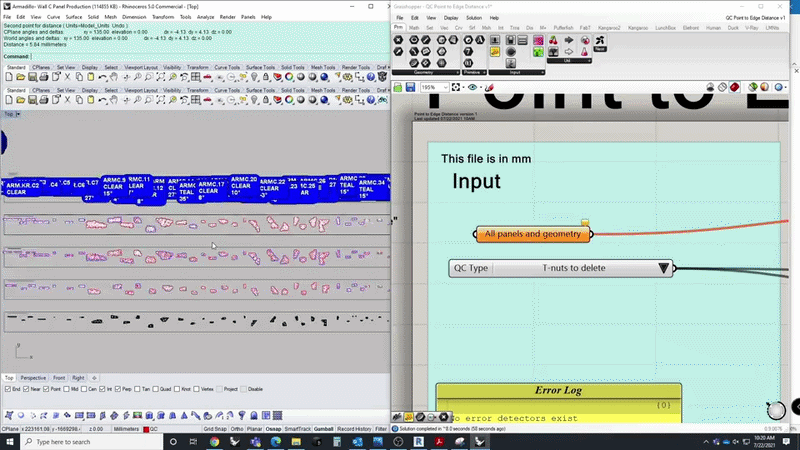

This Points Quality Check measures the different types of CNC geometry that may be too close to another.
The Schedule 2 and Concept Model tools create clear communication with the client.

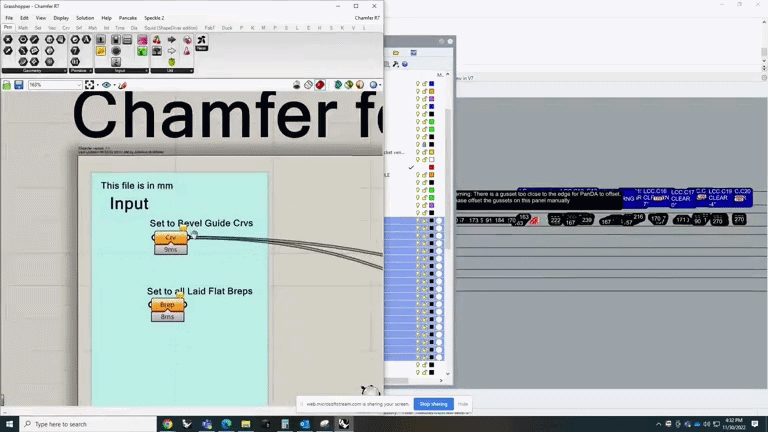

A chamfer tool that parametrically calculates the depth and angle of each chamfer cut before modeling it.

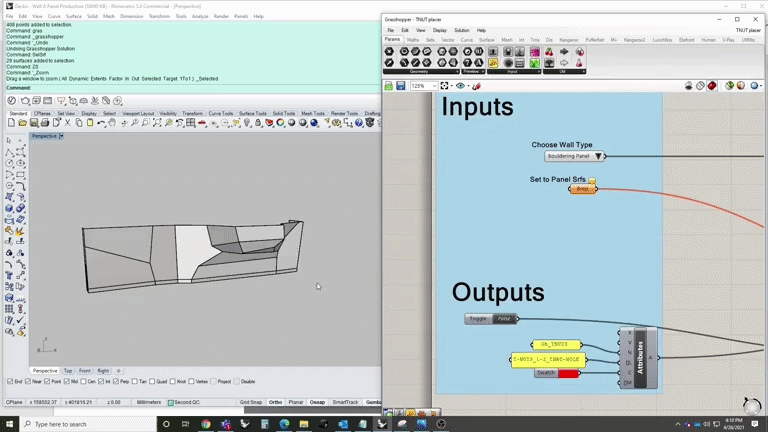

The T-Nut Placer models a grid of holes at standard spacings, depending on the type of climbing wall.

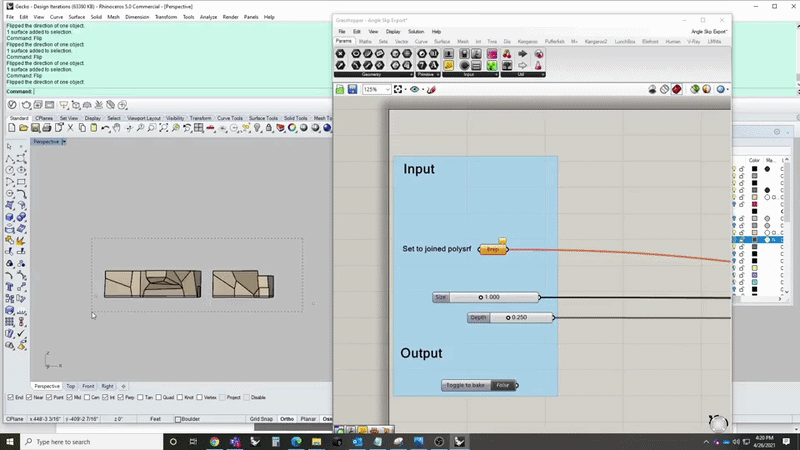

The Angle Exporter models a 3D label of what angle off vertical each panel is.
